Office Cubicle Layout: Plan Space That Works

An office cubicle layout is not just a way to fit more stations on a floor. It decides where people concentrate, take calls, meet briefly, store supplies and move through the day. A layout can look efficient on paper yet feel cramped once chairs are pulled back, drawers are open and the team is actually working.

The useful starting point is the work, not the cubicle count. A sales team on calls needs a different arrangement from a department handling private files, a group using two monitors or a hybrid team that shares desks. This guide helps you turn those realities into a practical workstation plan before furniture is ordered or moved.

1. Start with the work each station needs to support

List the roles that will use the space and what happens at each desk on a normal busy day. Note calls, customer conversations, focused screen work, paper handling, visitors, shared equipment and the number of monitors. It is tempting to treat every employee as one identical seat. That shortcut is how a compact station ends up carrying a full-time job it was never meant to support.

Group people by the work that benefits from being near each other. Teams that trade quick questions may work well in a shared neighborhood. People handling confidential information, frequent calls or concentration-heavy work may need more visual separation or access to a quiet room. The open office layout guide is useful when the question is how those shared and private settings fit together.

Write a short brief before looking at individual cubicle sizes. Include current and expected headcount, the roles that need to sit together, equipment at each station, storage needs, work-from-home patterns and any rooms that must stay accessible. This gives the plan a job beyond squeezing desks into a rectangle.

Office workstation layout with desks and task seating

2. Choose a cubicle layout that matches the room

Most cubicle plans use a few familiar arrangements. Inline runs place stations side by side and can be effective along a long wall or within a narrow room. Clusters group stations around shared panels and can create clear team neighborhoods. Pods work well when several people need to sit together without turning the entire floor into one long row. A more open benching-style arrangement can suit laptop-first or highly collaborative work, but it puts more pressure on nearby call space, storage and focus areas.

There is no universal winner. An inline run may preserve a central route in a long suite, while a cluster can use a square room more sensibly. A small department may need a mix: compact stations for a group, a larger workstation for paper-heavy work and one or two seats with room for a visitor. Use the room’s doors, columns, windows, electrical locations and shared rooms as constraints from the first sketch.

Do not let a catalog typical decide the layout by itself. Typical arrangements are useful starting points, but a real office has a reception path, printer traffic, storage needs and people who need to get to their chairs without negotiating an obstacle course. The layout should make the everyday route easy, not merely make the furniture count work.

3. Compare layouts by the tradeoff, not the diagram

A row of stations often looks like the simplest answer because it is easy to draw and easy to count. It can be a smart option when the room is narrow, the wall is uninterrupted and the team benefits from sitting in a line. The tradeoff is that a long run can leave the people in the middle with the most pass-through traffic, especially if printers, storage or meeting rooms sit at either end.

Clusters and four-station pods can create a stronger team neighborhood. Shared panels can make the group feel organized and may use the center of a larger room well. They also concentrate conversations, which is useful for a collaborative group and distracting for quiet, individual work. Consider who will face whom, where a manager needs to sit and whether a visitor can stop at one station without blocking someone else’s path.

Back-to-back workstations can offer a compact arrangement for teams that need a more open feel, while L-shaped or larger stations can suit roles with paperwork, samples or regular desk-side conversations. None of these choices should be made only from a picture. Set a simple rule for each group: what work must be easy, what interruption must be avoided, and what equipment has to live at the desk. That turns the diagram into a decision.

4. Plan the circulation before you commit to a seat count

Workstation dimensions are only part of the footprint. People need room to enter a station, pull out a chair, reach storage, pass a colleague and move to shared equipment. Check the paths with the workstations in use, not just as blocks on a floor plan. A route that disappears the moment two chairs are pulled back is not a functional aisle.

Map the routes people take most often: from the entry to the team area, from desks to printers and storage, to meeting rooms and to exits. Keep high-traffic routes from cutting through the middle of a focus-heavy row whenever possible. That small decision reduces interruptions and prevents the familiar shuffle of people squeezing past occupied desks all day.

Accessibility and building requirements matter here. The U.S. Department of Justice publishes the ADA Standards for Accessible Design, but the applicable rules and final clearances should be confirmed with the professionals responsible for your project. Treat a scaled layout and site measure as a planning tool, not a substitute for those requirements.

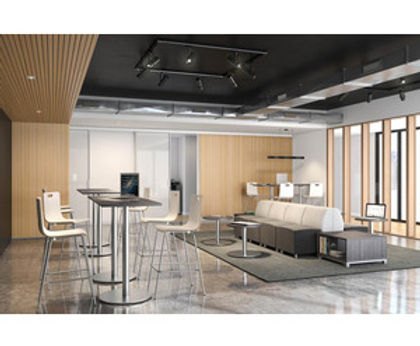

Commercial office furniture arranged with clear walking routes

5. Match workstation size and panel height to the job

A small workstation can be efficient for a person who works mostly on a laptop and spends part of the day elsewhere. It can be frustrating for someone who needs dual monitors, paper files, reference materials or a frequent guest chair. Begin with the equipment and tasks, then check whether the surface, storage and leg room fit the reality of the role.

Panel height needs the same practical judgment. Lower panels can preserve sightlines and daylight, which can help a team that works together. Higher panels can give more visual separation and may be appropriate for concentrated, confidential or phone-heavy work. They are not a replacement for proper private rooms or acoustic planning. If a role requires a confidential conversation, the answer is rarely to hope a taller panel solves the whole problem.

Furniture should also support adjustment. The Occupational Safety and Health Administration’s computer workstation evaluation guidance emphasizes a setup that supports neutral posture, appropriate reach and opportunities to change position. Before choosing a workstation size, account for the monitor, keyboard, mouse, docking equipment and the person doing the work. The office ergonomics checklist walks through that individual setup in more detail.

6. Place power, storage and shared tools on the plan

Power is easiest to deal with before the furniture arrives. Identify where monitors, phones, docking stations, printers and shared equipment will connect. A workstation layout that looks clean but leaves cables crossing a route or equipment stranded from power is not ready for work. Confirm the route from floor or wall power to each station and leave space for cable management where it is needed.

Storage deserves an address too. Ask what must be within reach at the workstation, what can sit in shared storage and what can live farther away. When storage is undersized, people compensate with boxes, files and supplies around their chairs. The space begins to feel crowded even when the drawing said there was enough room.

Put printers, supply cabinets and shared files where people can reach them without crossing the quietest work zone. A small shift in placement can protect a concentrated area from a stream of interruptions. It also gives you a more accurate view of what the office needs, because the layout is accounting for the whole workday rather than only the desks.

Office desks and storage arranged for a functional workplace

7. Use furniture that can adapt to the next change

Office needs rarely stay still. A department adds people, a team changes how often it comes in, or one group needs to sit together for a season. Modular cubicles and workstations can make those changes less disruptive when the system, panel sizes and components are planned with future moves in mind.

Before buying or reusing a system, ask what can actually change later. Can stations be added without creating an awkward end condition? Are the storage pieces, worksurfaces and panels still available? Can power reach a new run? Does the plan leave a logical place for a larger station or a private work setting if a role changes? Flexibility is useful only when it has been considered before the first installation.

Pre-owned and remanufactured systems can be a sensible part of that conversation. Bizz Furniture’s pre-owned inventory includes workstation options, while the cubicles and workstations page shows the kinds of systems a plan can bring together. The right approach may combine available inventory with new pieces where matching quantity, finish or function matters.

8. Test the plan before delivery day

Before approving a final layout, walk through the plan as if the office were already busy. Start at the entry. Pull a chair back. Open a drawer. Carry a box to storage. Take a private call. Walk from a workstation to the printer while another person is seated. These simple checks expose issues that a furniture schedule will not: a pinched route, a missing storage landing spot or a workstation that blocks a door when it is used normally.

Measure the actual site rather than relying on an old drawing. Confirm columns, door swings, window lines, electrical locations, ceiling conditions, loading access and building rules. If an existing system is moving with you, inventory the panels, worksurfaces, legs, storage and hardware before the layout depends on them. One missing component can change an otherwise tidy plan.

Then give the plan an owner. Someone should be able to answer where each team sits, how deliveries enter, where overflow items go and what changes if headcount shifts. A clear owner keeps the layout from turning into a series of last-minute decisions after the installers arrive.

A good handoff also separates the decisions that must be made before delivery from the small adjustments that can be made after the team has used the space. Confirm the station count, room assignments, power plan, major storage and circulation first. After move-in, keep a short punch list for chair adjustments, accessory placement and minor storage changes. That approach protects the decisions that are costly to undo while leaving room to improve the workplace from real use.

Frequently asked questions

What is the best cubicle layout for a small office?

For a small office, the best layout is usually the one that preserves a clear route, gives each person enough work surface and leaves room to pull out a chair. A simple inline run or compact cluster can work well, but the room shape, windows, doors and the work each person does should decide the final arrangement.

How much room should I allow around cubicles?

Do not calculate from workstation dimensions alone. Include chair pull-back, paths to doors and shared equipment, drawer and cabinet clearance, and the building or accessibility requirements that apply to the project. A scaled plan and site measure are the reliable way to confirm the fit.

Are higher cubicle panels always better for privacy?

No. Higher panels can help with visual separation and some sound control, but they can also reduce daylight and make a small room feel closed in. Match panel height to the work, the need for confidentiality and the balance between focus and collaboration.

Can used cubicles be reconfigured for a new office?

Often, yes. Modular systems can be a strong option when the components, dimensions and quantities match the plan. Review the panels, worksurfaces, storage, power and replacement parts together before relying on an existing system for a new floor plan.
